PRODUCT FUNCTIONS
 SMS and GPRS TCP.UDP Communication
 AGPS (with GSM Base Station ID)
 Track by SMS/GPRS (MEITRACK Protocol)
 Track on Demand
 Track by Time Interval
 Track by Distance Interval
 Two-ways audio
 Listen-in (Voice Monitoring)
 Inbuilt Motion Sensor for power saving
 Internal Battery
 SOS panic button
 Movement Alarm
 Geo-fencing control
 GPS Blind Area Alarm
 Low Battery Alarm
 Speeding Alarm
 Three buttons for making phone call and/or sending message

SPECIFICATIONS

Items	Specifications
Dimension	78 x 45 x 21 mm
Weight	70 g. (with battery)
Charging Voltage	Mini USB charging interface, DC 4.2V-5.5V /400mA
Back-up Battery	950mAh/3.7V rechargeable and replaceable Lithium-Ion battery  (Nokia BL-5C compatible)
Power Consumption	65mA Standby current
Operating Temperature	-20°C-55°C
Humidity	5%-95% Non-condensing
Work Time	72 hours in power-saving mode and 10 hours in normal mode
LED	2 LED lights to show GPS, GSM and other status
Buton	1 SOS and 1 power on/off
Microphone	Internal microphone for wiretapping
Memory	4MBytes
Sensor	Accelerometer
GSM Frequency	Quad Band GSM 850/900/1800/1900MHz
GPS Chip	Latest GPS SIRF-Star III chipset
GPS Sensitivity	-159dB
GPS Frequency	L1, 1575.42 MHz
C/A Code	1.023 MHz chip rate
Channels	20 channel all-in-view tracking
Positioning Accuracy	10 meters, 2D RMS
Velocity Accuracy	0.1 m/s
Time Accuracy	1 us synchronized to GPS time
Default datum	WGS-84
Reacquisition	0.1 sec., average
Hot start	1 sec., average
Warm start	38 sec., average
Cold start	42 sec., average
Altitude Limit	18,000 meters (60,000 feets) max.
Velocity Limit	515 meters/second (1,000 knots) max.
Acceleration Limit	Less than 4g
Jerk Limit	20 m/sec
Work time	50 hours in power-saving mode and 10 hours in normal working mode
LED	3 LEDs to show power, GPS, GSM and other status
Button	3 buttons (SOS/B/C) for making phone calls and sending SMS

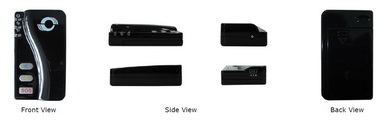

GT60 View
